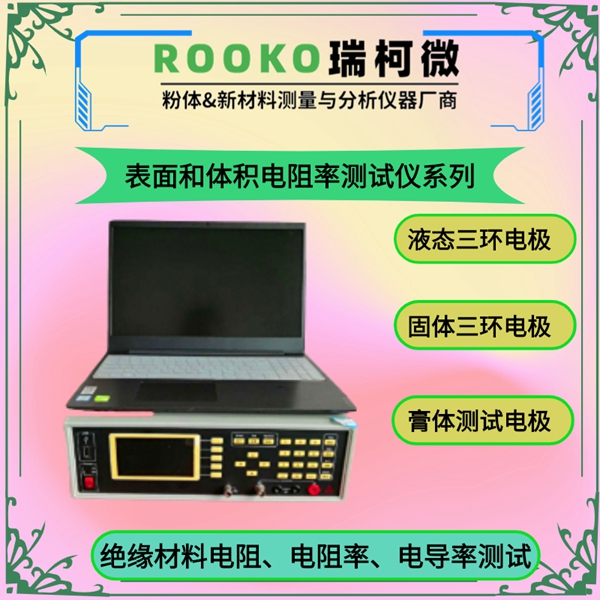

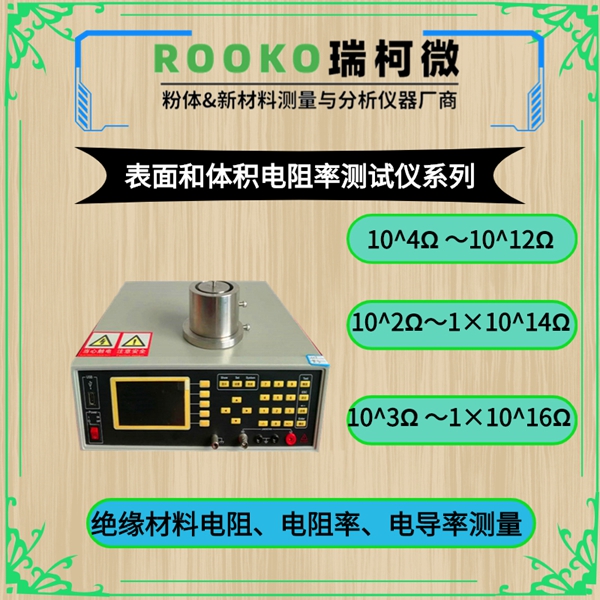

FT-300A导体材料电阻率测试仪
FT-300A
Conductor material resistivity tester
一.概述Overview：
采用四端测量法适用于生产企业、高等院校、科研部门，实验室；是检验和分析导体材料和半导体材料质量的重要工具。可配置不同测量装置测试不同类型材料之电阻率。液晶显示，温度补偿功能，自动量程，自动测量电阻，电阻率，电导率数据。恒流源输出；选配：PC软件过程数据处理和标准电阻校准仪器，薄膜按键操作简单，耐用，符合人体工学操作规范，中文或英文两种语言界面选择，满足及国外客户需求.
Adopt the four-terminal measurement method
and apply to manufacturing enterprises, university, scientific research
departments, laboratory. It is an important tool for testing and analyzing the
quality of conductor materials and semiconductor materials .Different measuring
devices can be configured to test the resistivity of different types of
materials. Liquid crystal display.temperature compensation function. automatic
measurement. automatic measuring resistance. resistivity. electrical
conductivity data .Constant current source output. Optional: PC process data
processing software and standard resistance calibration instruments. thin-film
button operation is simple.durable.Accord with human body engineering operation
specification. Two kinds of language interface to select either in Chinese or
English. Meet the demand of domestic and foreign customers.
二.FT-300A导体材料电阻率测试仪技术规格及型号Technical specifications and models
|
ink8">ink7">规格型号models
Specification
|
FT-300A1
|
FT-300A2
|
FT-300A3
|
FT-300A4
|
|
电阻Resistance
|
10-7～2×107Ω
|
10-6～2×107Ω
|
10-5～2×106Ω
|
10-4～2×105Ω
|
|
2.电阻率范围Resistivity
range
|
10-8～2×108Ω-cm
|
10-7～2×108Ω-cm
|
10-6～2×107Ω-cm
|
10-2～2×107Ω-cm
|
|
3.电导率Conductivity
|
5×10-8～108s/cm
|
5×10-8～107s/cm
|
5×10-7～106s/cm
|
5×10-7～102s/cm
|
|
4.测试电流范围Test
current range
|
1μA，10μA，100µA，1mA，10mA，1000mA
|
1μA，10μA，100µA，1mA，10mA
|
|
5.测量电压量程
Measuring voltage range
|
测量电压量程/ Measuring voltage range：2mV 20mV 200mV 2V
测量精度:±（0.1%读数）/ Measuring
accuracy±0.1%
分辨率/ Resolution： 0.1uV
1uV 10uV 100uV
|
|
6.电流精度Current
|
±0.1%读数accuracy
|
±0.2%读数accuracy
|
±0.2%读数accuracy
|
±0.3%读数accuracy
|
|
7.电阻精度Resistance
|
≤0.3% accuracy
|
≤0.3% accuracy
|
≤0.3% accuracy
|
≤0.5% accuracy
|
|
8.显示读数Display
|
液晶显示：电阻值、电阻率、电导率值、温度、单位自动换算、横截面、高度、电流、电压等
LCD: resistance. resistivity.
conductivity. temperature. automatic unit conversion. cross section. height.
current. voltage. etc.
|
|
9.测试方式method
|
四端测量法Four-terminal measurement method
|
|
10.测量装置（治具）Measuring
device (fixture)
|
选购Choose to buy
1.标准方体和圆柱体测量装置Standard cube and cylinder measuring device：测试行程：L70mm*W：60mm
2.定制治具Fixture
customized.
|
|
11.工作电源Working
power
|
AC
220V±10%.50Hz功
耗/ Power consumption：<30WH
|
|
12. 主机外形尺寸
|
约330mm*350mm*120mm Overall dimensions
|
|
13.净重量weight
|
约6kgNet weight
|
|
14.ink4">ink3">标配外选购
Option to purchase
|
1.标准校准电阻1-5个；2.PC软件一套；3.电脑和打印机依据客户要求配置；4.计量证书1份
1 standard calibration resistor 1-5pcs;
2.PC software a set; 3 Computer and printer are configured according to
customer requirements; 4 Measurement certificate 1pcs
|
FT-300A导体材料电阻率测试仪配套方案：解决各材料状态 --固态、液态、气态、颗粒状 电阻、电阻率、电导率测量
ROOKO瑞柯品牌-------专注于新材料测量与分析仪器解决方案
----解决材料：导体、半导体、缘材料常温及高温等环境下电性能分析.
----我们一直在做：研发、生产、销售、租赁、实验室样品分析及后延扩展服务.
|
